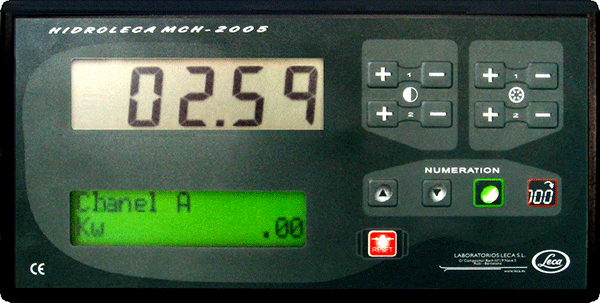

Automatic water doser equipment MHC-2005
The equipment MHC-2005, is thought to realize the automatic dosing of the water for concretes superior to cone five by means of the reading of the power consumed by the mixer by means of the utilization of a mike vatimetre of high precision.
The equipment MHC-2005, is thought to realize the automatic dosing of the water for concretes superior to cone five by means of the reading of the power consumed by the mixer by means of the utilization of a mike vatimetre of high precision
There has a memory for fourteen recipes arranged in two channels of seven recipes each (channel A and B). The selection of the channel is realized by the keyboard and the selection of each one of seven recipes of the group by means of the external connection of the corresponding entry of the equipment.
The channels A and B, besides realizing the selection of the group of seven corresponding recipes, have an adjustment of the scale of measure which end is to obtain an indication of the personalized reading of the user. The adjustments of the water dosing and points of shot operate on these scales.
The adjustment of the points of intervals of water dosing is obtained by doing a mass of concrete of manual form, dosing the water in such a way that we would be able to construct, with the written down values, a similar curve to the showed one. Being B the value in emptiness. B, point of overcoming in the beginning of the water dosing. E, correct mass value and D, maximum value of power.
Main features:
• Continous Reading of plasticity.
• External indication adjustment of the indicator.
• Default settings of mixer status.
• Fourteen pre-selections for cut-point or end of water dosing
• Seven remote petitions
• Control for two concrete volumes.
• Thin adjustment for the quantity of water to be dosed
• LCD display
